Conveyors for Building & Construction Materials
(or wide, long & heavy loads)
... including servo sweep, divert and multi-strand indexing
Winneconne, WI – Multi-Conveyor recently built a series of mild-steel, plastic belt conveyors to transport elongated building construction materials. In one section, the customer requested to divert the product to the left or to the right on command for stacking purposes.

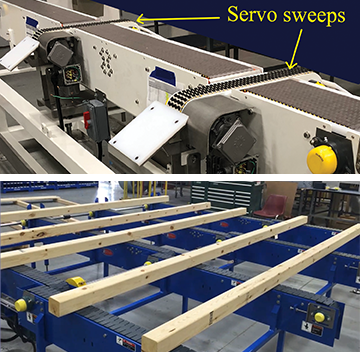

Multi-Conveyor engineers designed a 5-sweep pop-up powered divert, using individual motors and controls, to pull a gap and divert to the operator-set direction. The diverter control parameters are manually set by product size. A photo-eye on the discharge of the conveyor triggers the sweep lift cylinders, diverting products to the appropriate side.
An operator will select the appropriate length and left/right direction using manual switches located on the main enclosure door. The product now diverts to the opposite side.
In another construction materials project, Multi-Conveyor built a multi-strand indexer, to move heavy cartons of stacked elongated metal product, up to 560 pounds total weight at any given time, across 12' of conveyor chains. Due to the product width, the system has a common shaft configurations for 8 narrow chains instead of one extremely wide and costly belt conveyor.
Note: Product in these videos were used for demonstration purposes only.
These are just a few examples of many extraordinary projects that we are proud to have built here at Multi-Conveyor. No matter how big or how small, we're here to help.
YouTube link to the equipment in this PR: https://youtu.be/5ioockF4000
