Simple, Manually Operated 1:2 Divert - so easy!
with adjoining pin-pull interlock conveyor
Multi-Conveyor recently built a system that transports bagged snack products through two conveyors. The system features a 2-position, operator adjusted, manual divert gate and a single pin-pull interlock release that allows disconnect of a portable conveyor for relocation.
The fixed position 8” wide by 25’ long table top conveyor employs two 90-degree curves to shape the system in the customer’s required footprint, feeding a downstream case packer. An adjoining 13’ straight running portable conveyor can be wheeled into place, pin-locked to the fixed main line, and product sent to an alternate packing destination when required.

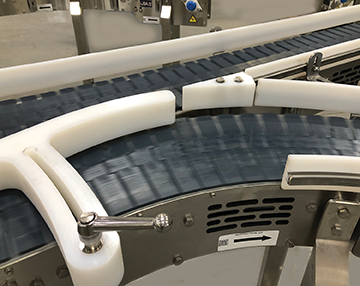

Just prior to the first curve, a manual product divert gate was installed to transfer product to the desired packing area. In this brief video, we demonstrate how the manual divert is easily moved into and out of position. Multi-Conveyor 1:2 (one-to-two) divert options include gates, paddles or guides that can be activated manually or automatically using programmable logic controls.
A cost-effective pin-in-place interlock marries the conveyors. The connecting straight running section is on 6” diameter castors for portability. This gives the customer flexibility to move the conveyor out of production, allowing operator access to other critical functions.
Various styles of infeed or discharge end LBP (low back pressure) transfers were used, along with the straight flush mount transitions at the divert areas.
The wash down conveyors include slotted cleanout holes and bolted construction with continuous welds. In this case, the motors and reducers were not required to adhere to wash down specifications. Note: Product used in this video are for demonstration purposes only.
See even more conveyor systems to combine, divert, lane, merge & sort. Then, call us at 1-800-236-7960 or Contact Us. Let's get working on your next project!
Click on the image to watch a brief video of this machine in action!
