Perfectly Timed 2-to-1 Merge Conveyor uses FIFO Technology

Cheryl Miller posted on February 26, 2019 13:44

Perfectly Timed (FIFO) First-in, First out Technology

2-to-1 Merge Conveyor

     (Winneconne, WI) Multi-Conveyor recently built a super sanitary stainless steel welded, plastic belt conveyor to merge plastic wrapped bulk cheese using brand new FIFO (first-in, first-out) technology. These first clips show the random, uneven throughput which lacked the customers requirement of 12" minimum spacing between loaves.

To resolve the issue, our experienced electrical team incorporated pulse and photo-eye sensors; a CompactLogix processor, PowerFlex 525 drives; servo motor controllers and VFD's, to develop a new merge concept solution that alleviated the big gaps between product while allowing for more consistent spacing.

A virtual axis measures “pocket length” on the merging conveyor and a pulse is generated in specified inch increments of travel. A product is then released to the pulse on a FIFO (first in, first out) basis. Whichever one arrives first is released first, but to the pulse.

As you'll see in the video, this technology allows us to have the same merge throughput running at 70% of the conveyor speed required previously. To invert that, we could merge 30% more product at the previous conveyor speed.

Key sanitary features were stainless steel welded frame design, continuous welds (ground and polished); stainless steel drives and drive mounts; stainless steel idle ends; washdown duty motors and reducers - to name a few.

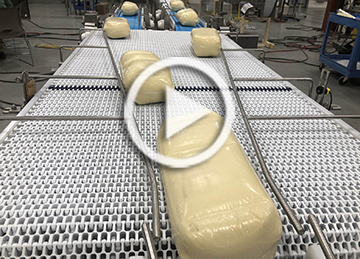

Click on the image below to watch the FIFO merging system:

FIFO first in first out conveyor merge

Then, see our entire gallery on conveyors that merge, combine, sort, index and more. Click here.
